The right STP formula calculation plays a vital role in planning a Sewage Treatment Plant for any industrial facility. Many industries face challenges with capacity estimations that don’t add up. These mistakes lead to treatment systems that underperform or cost too much. Standard engineering practices show that sewage generated usually amounts to 80-90% of the total water needed. These calculations are the foundations of proper STP design.
The relationship between water consumption and sewage generation stands out as a key factor in industrial STP planning. Several elements determine the Sewage Treatment Plant (stp tank full form) capacity. The industry type and its water usage patterns top the list. Residential areas produce about 80-150 liters of sewage per person daily. Industrial requirements can vary substantially. The stp parameters limits must align with pollution control board regulations. The volume at stp formula helps engineers work out the right tank dimensions. The stp price ranges from 4 lakhs to 80 lakhs, and it can reach crores for facilities that process between 2 KLD to 1 MLD. This makes precise capacity calculation a significant financial consideration.
This piece offers a step-by-step breakdown to calculate the right STP capacity for industrial applications. You’ll learn how to meet regulatory standards while getting the best performance and cost balance.
Understanding Industrial Wastewater Characteristics
Industrial wastewater creates complex challenges for treatment facilities. Manufacturing processes create varying compositions of industrial effluent. Each treatment scenario becomes unique. These characteristics are the foundations of developing a working stp formula for your facility.
Types of industrial wastewater: process vs domestic
Industrial facilities generate two distinct wastewater streams. Manufacturing operations produce process wastewater that contains industry-specific contaminants. You can classify this wastewater into cooling, washing, and process effluent. The facility’s employee bathrooms, cafeterias, and other non-manufacturing sources generate domestic wastewater.
Process wastewater creates bigger challenges because its toxins are nowhere near the concentration of domestic waste. A pulp and paper industry’s effluent has very high biochemical oxygen demand (BOD) values that reach 9,364 mg/L. Oil and gas operations generate wastewater with BOD levels up to 44,300 mg/L.
Common pollutants: BOD, COD, TSS, TDS
Key indicators that measure industrial wastewater strength include:
- BOD (Biochemical Oxygen Demand): Measures oxygen consumed by microorganisms while decomposing organic matter. Regular domestic wastewater ranges from 110-350 mg/L, but industrial wastewater is a big deal as it means that these values by ten times.
- COD (Chemical Oxygen Demand): Shows all chemically oxidizable materials. Pulp industries create wastewater with COD values reaching 56,872 mg/L.
- TSS (Total Suspended Solids): Particulate matter suspended in wastewater.
- TDS (Total Dissolved Solids): Dissolved materials that pass through filters.
Industrial effluent contains heavy metals, oils, greases, and toxic chemicals that you rarely find in residential waste.
Why industrial STPs differ from residential ones
Industrial Sewage Treatment Plants must meet specialized design requirements beyond residential applications. They must handle higher pollutant concentrations and varying flow rates. Pollution control boards set stricter stp parameters limits for industrial facilities.
Industrial STPs use chemical and physical treatment processes among biological treatments to neutralize toxins and filter metals. Volume at stp formula calculations must include these specialized treatment requirements. This often leads to larger footprints of 20-50 square meters to treat 50-100 KLD.
The stp price for industrial applications runs higher. Setup costs range from ₹15-50 lakh plus yearly maintenance of ₹50,000-₹2 lakh due to complex waste treatment requirements.
Step-by-Step STP Capacity Calculation for Industries
Accurate calculations are the foundations of industrial STP design. Industrial STPs need precise sizing that depends on operational parameters and wastewater characteristics, unlike residential systems. Here’s a systematic approach to determine the ideal capacity for your industrial facility.
1. Estimating total water demand using LPCD or process data
Your total water consumption needs to be determined first. Industries calculate this using either:
- Standard LPCD values: Industrial facilities typically use between 50-450 liters per capita per day (LPCD) based on the industry type
- Process data: Manufacturing processes require actual water consumption data from production records
Facilities with both industrial and domestic usage should combine these values: Total Water Demand (TWD) = (Number of staff × LPCD) + Process water requirement

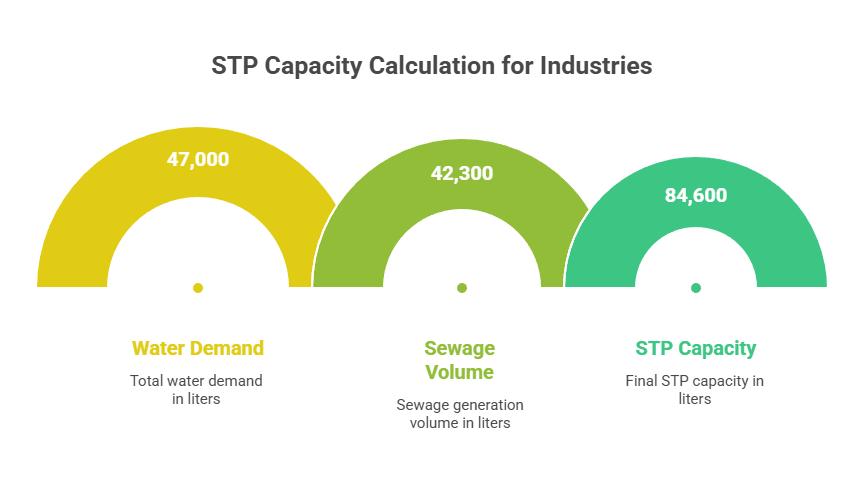

A textile plant with 200 employees at 135 LPCD plus 20,000 liters of process water would have a TWD of 47,000 liters/day.
2. Calculating sewage volume: 80-90% of water demand
Water consumed doesn’t completely turn into wastewater. About 80-90% of water consumption returns as sewage. The stp formula works like this:
Estimated Sewage = TWD × (0.8 to 0.9)
Process-heavy operations in industrial facilities typically use 85-95%. Our previous example with 90% conversion shows: Sewage Generation = 47,000 × 0.9 = 42,300 liters/day
3. Applying peak factor: 1.2x to 2.0x average flow
Wastewater flow varies throughout the day. Peak factors between 1.5 and 2.0 help accommodate these variations in industries.
Population size affects this value. Smaller populations need higher peak factors:
- Up to 20,000 people: Peak factor of 3.0
- 20,000-50,000 people: Peak factor of 2.5
- 50,000-75,000 people: Peak factor of 2.25
- Above 75,000 people: Peak factor of 2.0
4. Final STP capacity = peak sewage volume
The final volume at stp formula multiplies average sewage flow by the peak factor:
STP Capacity = Average Sewage Flow × Peak Factor
Our example with a peak factor of 2.0 shows: STP Capacity = 42,300 × 2.0 = 84,600 liters/day (84.6 KLD)
This capacity will give your stp tank full form (Sewage Treatment Plant) the ability to handle maximum flow without overflow. It meets stp parameters limits while optimizing stp price by avoiding unnecessary oversizing.
Design Considerations Beyond Flow Volume
Understanding specific pollutant characteristics in your wastewater stream is crucial for industrial STP design beyond basic flow calculations. These characteristics determine treatment requirements and ended up affecting the stp price and efficiency.
Pollutant load analysis: BOD, COD, TSS levels
The mass of a substance passing through a river point in a specific timeframe represents pollutant load. Industrial wastewater typically contains BOD levels reaching 5,000-6,000 g/m³ for COD and 1,500-2,500 g/m³ for TSS. These parameters determine the required treatment intensity. Industrial facilities generate nearly 50% of COD load while making up only 10-15% of total wastewater flow.
STP parameters limits as per CPCB guidelines
The CPCB mandates these treated sewage standards:
| Parameter | Required Standard |
|---|---|
|
pH |
6.5-8.5 |
|
BOD |
<10 mg/L |
|
COD |
<50 mg/L |
|
TSS |
<10 mg/L |
|
Ammonical Nitrogen |
<5 mg/L |
|
Total Nitrogen |
<5 mg/L |
|
Fecal Coliform |
<100 MPN/100ml |
Volume at STP formula for tank sizing
The volume at stp formula helps calculate tank capacity: Tank Volume = Flow Rate × Retention Time
Space and depth requirements for STP tank
Primary settling tanks need 2.15-3.5m depth with an additional 0.25m for sludge and 0.3-0.5m freeboard. Industrial tanks require modular design to handle variable loads effectively.
Cost Estimation and Technology Selection
The cost of an industrial stp tank full form (Sewage Treatment Plant) changes based on how much it can process and what technology you choose. Let’s look at how these costs break down to help you plan better.
STP price range by capacity (KLD to MLD)
Industrial STP prices go up with capacity. A small 2-10 KLD unit costs between ₹1.5-5 lakh. The medium-sized plants that handle 50-100 KLD will set you back ₹6-30 lakh. Larger systems processing over 500 KLD start at ₹50 lakh and can go up to several crores for MLD-scale operations.
Cost effect of MBBR, SBR, and MBR technologies
Your choice of technology plays a big role in the final stp price:
- MBR (Membrane Bioreactor) costs the most at about 300 lacs per MLD but gives you the best water quality
- SBR (Sequencing Batch Reactor) needs low to medium investment and balances performance with cost
- MBBR (Moving Bed Biofilm Reactor) sits in the middle with economical operation
The capital costs stack up this way: MBR > SBR > MBBR.
O&M cost considerations for industrial STPs
Here’s what you’ll spend on operations:
- Energy takes the biggest chunk at 150-300 kWh/day/MLD
- Maintenance of civil work and equipment needs 1.85-2.37 lacs yearly per MLD
- Chemical costs come mainly from disinfection
- The core team expenses can reach 12-15% of your project cost
Your monthly O&M bill will run between ₹10,000 to ₹1 lakh depending on the plant’s size.
Why Choose SUSBIO and SUSBIO ECOTREAT for Industrial STP Needs?
When it comes to industrial wastewater management, precision, reliability, and compliance are non-negotiable. This is where SUSBIO and its flagship product, SUSBIO ECOTREAT, stand out as the best choice for industries across India.
Key Reasons to Choose SUSBIO ECOTREAT:
1. Advanced Prefabricated Design
SUSBIO ECOTREAT uses high-quality FRP (Fiber Reinforced Plastic) material that ensures superior structural strength and corrosion resistance. Unlike traditional RCC tanks that require extensive civil work, SUSBIO’s plug-and-play design minimizes installation time and site disruption, making it ideal for industries with limited downtime.
2. Dual Treatment Technology
Industrial wastewater often contains higher pollutant concentrations than domestic sewage. SUSBIO ECOTREAT incorporates a dual treatment process—biological and advanced polishing stages—to achieve CPCB-compliant discharge standards for BOD, COD, and TSS even under fluctuating industrial loads.
3. Energy Efficiency and Low OPEX
Industries face recurring costs in terms of energy and maintenance. SUSBIO ECOTREAT is designed for optimized aeration and low energy consumption, reducing operating costs by up to 30% compared to conventional systems.
4. Customization for Industrial Applications
Different industries—from textile and paper to food processing and pharmaceuticals—have unique effluent characteristics. SUSBIO provides tailored solutions with modular designs, allowing easy upgrades and capacity enhancement as industrial operations scale up.
5. Compact Footprint for Space-Constrained Sites
Industrial land is expensive. SUSBIO ECOTREAT offers compact, prefabricated solutions that require significantly less space compared to traditional STPs without compromising treatment efficiency.
6. Complete After-Sales Support
Our in-house installation and service team ensures hassle-free commissioning, routine maintenance, and quick technical support, making us a long-term partner in wastewater compliance.
FAQs on STP Capacity Calculation for Industries
1. How do you calculate STP capacity for an industry?
STP capacity depends on total water consumption, percentage of wastewater generation (80–90%), and peak factor (1.2–2.0). The formula is:
STP Capacity = (Total Water Demand × 0.8 to 0.9) × Peak Factor
2. Why is peak factor important in STP sizing?
Industrial wastewater flow varies throughout the day. Peak factors (1.2 to 2.0) ensure the STP can handle maximum load during peak hours without overflow or treatment inefficiencies.
3. What is the minimum capacity of an industrial STP?
Small industrial STPs start from 2 KLD (kiloliters per day). For large industries, capacities can range from 50 KLD to 1 MLD or more, based on water usage and effluent characteristics.
4. Which technology is best for industrial STPs?
Popular technologies include:
MBBR (Moving Bed Biofilm Reactor) – economical and efficient
SBR (Sequencing Batch Reactor) – flexible for variable loads
MBR (Membrane Bioreactor) – premium quality water, ideal for reuse
The choice depends on pollutant load, space availability, and budget.
5. Why choose SUSBIO ECOTREAT over traditional STPs?
SUSBIO ECOTREAT offers:
Prefabricated plug-and-play design (quick installation)
Dual treatment process (better compliance with CPCB norms)
Compact footprint & modular scalability
Energy efficiency & low OPEX
Full technical support and maintenance
Conclusion
Accurate STP capacity calculations are the foundation of good industrial wastewater management. Industrial effluent is substantially different from residential sewage, containing higher concentrations of pollutants like BOD, COD, TSS, and TDS that require specialized treatment approaches.
A reliable framework exists to size industrial treatment facilities. This framework uses a four-step calculation process: estimate water demand, determine sewage volume (80-90% of consumption), apply appropriate peak factors, and calculate the final capacity. Following this method carefully prevents undersizing and oversizing problems that many industrial installations face.
Flow calculations combined with pollutant load analysis shape treatment requirements and technology selection. CPCB guidelines set clear parameters for all industrial STPs, making regulatory compliance crucial during design.
Financial planning deserves serious attention, as STP costs increase dramatically with capacity. Small systems cost a few lakhs, while MLD-scale operations run into several crores. Technology choices (MBR, SBR, MBBR) affect both capital investment and operational expenses.
For industries looking for an efficient, cost-effective, and sustainable solution, SUSBIO and its flagship product SUSBIO ECOTREAT provide a game-changing approach. With prefabricated plug-and-play design, dual treatment technology, energy efficiency, and compliance with CPCB norms, SUSBIO ECOTREAT ensures high performance, easy installation, and low OPEX. Choosing SUSBIO means partnering with a trusted leader in industrial sewage and wastewater treatment, committed to sustainability and long-term reliability.
